ZD03、ZD04

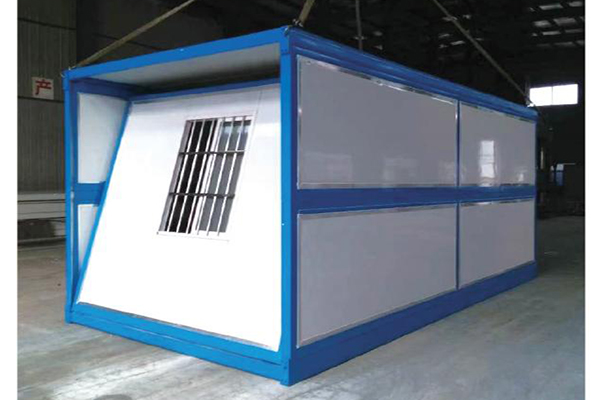

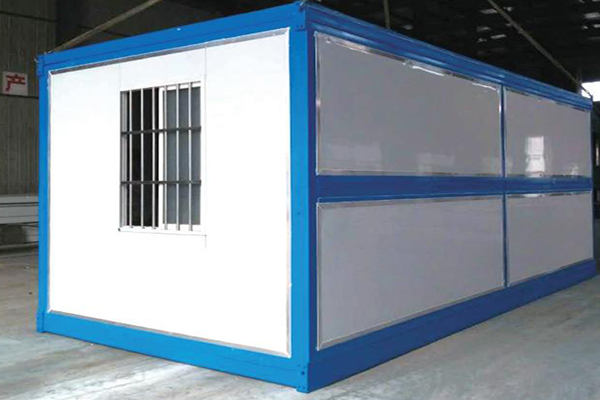

Folding house

olding and quick-assembly boxes are modern modular housing solutions, designed with pre-fabricated components for fast assembly and disassembly. Folding boxes can be compacted for easy storage and transport, while quick-assembly boxes form a stable structure through assembly. Both offer energy efficiency, environmental friendliness, seismic resistance, and versatility for various applications.

  • Area:14.3㎡
  • Size(l*w*h):5900*2440*2896mm
  • Fold:5900*2440*600mm
  • Total Weight:Approximately1.5 tons
  • Power Requirement:
  • Seismic grade:


1

Configuration Table

  •  Structure: Galvanized Cold-Rolled Steel

  •  Wall Panel: Color Steel Rock Wool Floral Panel

  •  Wall Surface: Outer Panel Galvalume Color Steel Plate, Inner Panel Galvalume Color Steel Plain Plate

  •  Roof Tile: Galvalume Color Steel Plate

  •  Roof Covering: Galvalume Color Steel Plate

  •  Flooring: Cement Flooring

  •  Glass: Single-Glazed Glass

  •  Switches: High Break Capacity Miniature Circuit Breaker, Five-Outlet/Three-Outlet Socket, Single-Pole Switch


Customizable internal structure.
